EVO/™Air Fiddler PRO

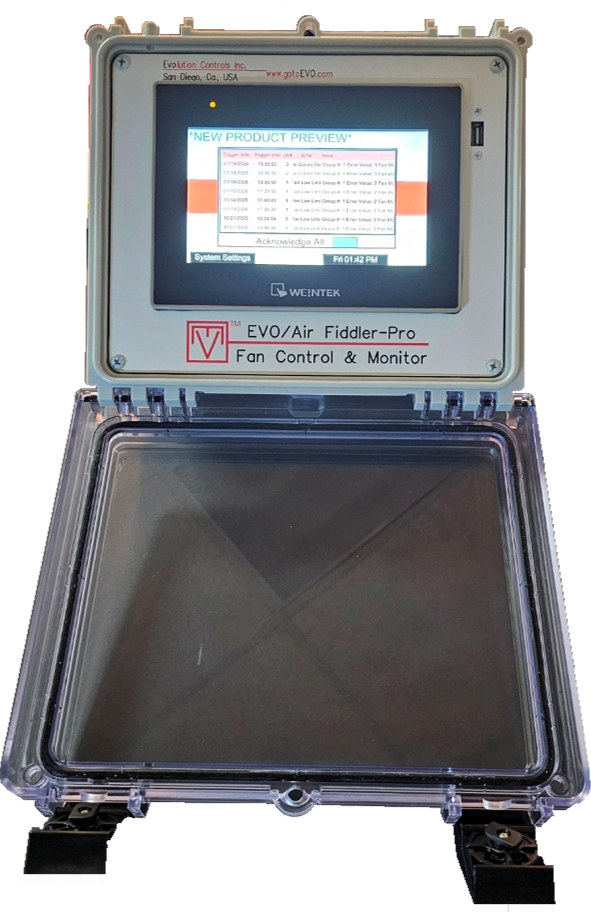

The Evolution Controls Air Fiddler PRO is a field configurable 7” color touch screen console that intelligently controls & monitors Fan Filter Units equipped with EVO/ECM-UCC & Envirco UCC controls. The easy-to-use console in a wall mounted package can control up to 12 Rooms/Zones and 200 FFUs.

Works well with:

  • FFU network control and monitoring

  • Multi-zone cleanroom airflow management

  • Adjust air flow based on analog sensor input

  • Energy optimization of fan systems

    • 7” Color Touch Screen

    • Up to 12 Zones

    • Up to 200 FFUs

    • Audible, Visual & Recorded Alarms

    • Standby Clock & Calendar

    • Real Time Clock

    • 7 Day Trend Log

  • Display:

    • Width : 7"

    • Resolution : 1024 x 600 Pixels

    • Brightness : 450 cd/m2

    • Contrast Ratio : 800:1

    • Backlight : LED

    • Backlight Life : >30K hrs.

    • Colors : 16.7M

    • Viewing Angle : 85⁰

    • Pixel Pitch : 0.1506"Horz. X 0.1432Vert.

    Touch Panel:

    • Type 4-Wire : Resistive

    • Accuracy : ±2%

    Memory:

    • Flash : 4GB

    • Ram : 1GB

    Processor:

    • 4 Core RISC

    I/O:

    • USB Host : USB 2.0

    • COM Port : RS-485 Half Duplex

    Power:

    • Source : ~120V-25% to ~240V+10%

    • Consumption : 25W

    Environment:

    • Protection : UL 4X, NEMA 4, IP66 Front

      Panel

    • Storage Temperature : -4⁰F/-20⁰C to 140⁰F/60⁰C

    • Operating Temperature : 32⁰F/0⁰C to 131⁰F/55⁰C

    • Relative Humidity : 10% to 90% Non Condensing
