New Products



Evolution Controls Inc. is pleased to present our newest additions to the expanding line of controllers for the energy-saving EC Motors.


SSR Electric Heater Module Basic

This is the cost-saving version of the EHM-PRO. It is a simple solution to interface with 0V to +10V or +2V to +10V temperature control signal to control a Solid State Relay (SSR) switched electric heater assembly.

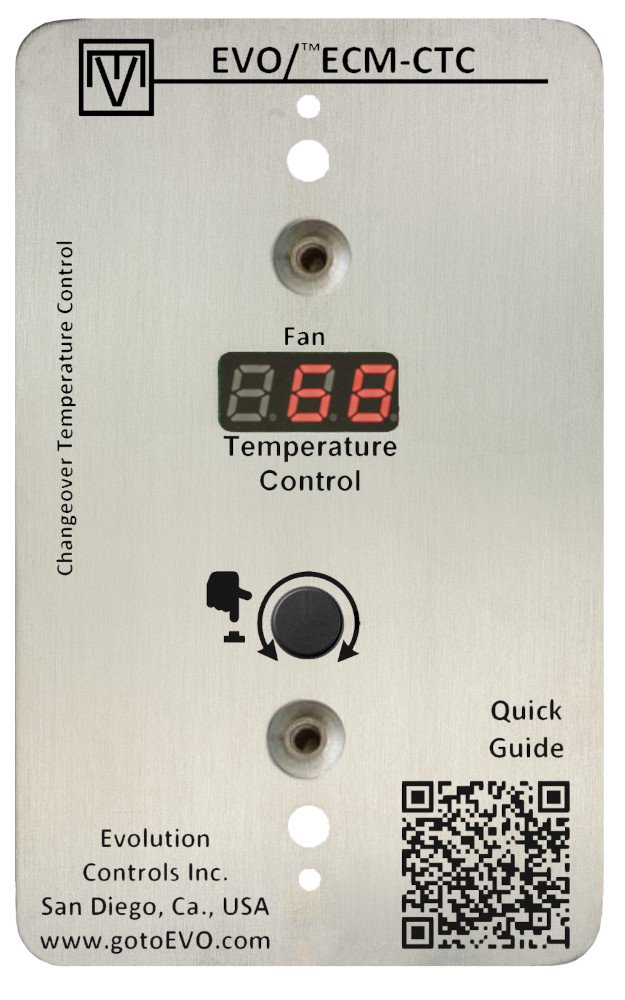

EVO/™ECM-CTC (Changeover Temperature Control)

  • Exhaust Fan Control

  • Whole house fan control

  • Outside Air Economizer

  • Discharge Air Temperature Control

  • Condenser Air Fan Control



  • Equipment manufacturer can download preconfigured custom profile to PRO series controls


GCU wall plate mounting.jpg
EVO/™ECM-GCU (Gradual Control Unit)

  • PWM or 0-10VDC universal output

  • Allows accurate manual adjustment of EC motors and other HVAC and industrial control applications

  • Compatible with standard single gang box for wall mounting in occupied space



EVO/™RLSW (Relay Switch)

  • Detects PWM or senses 0-10VDC signal thresholds to automatically switch equipment on/off in HVAC applications

  • Selectable switching voltage thresholds in 0-10V voltage sensitive relay mode

  • Built-in hysteresis to avoid contact chatter


EVO/™ECM-BCU (Bluetooth® Control Unit)

Our new BCU provides all the advantages of wireless remote control and more.


EVO/™ECM-VCU S3 (Visual Control Unit)

The VCU S3 now has a new general 0-10VDC output option for 0-10VDC controlled EC motors, damper actuators, valves, etc.




EVO/™ECM-DPC (Differential Air Pressure Control Unit)

An easy to use, cost-effective, one-piece air pressure controller. Control the air pressure in a space served by an EC driven fan or 0-10VDC controlled actuator. Great solution for variable volume building exhaust systems, room pressurization, and duct/plenum pressurization.

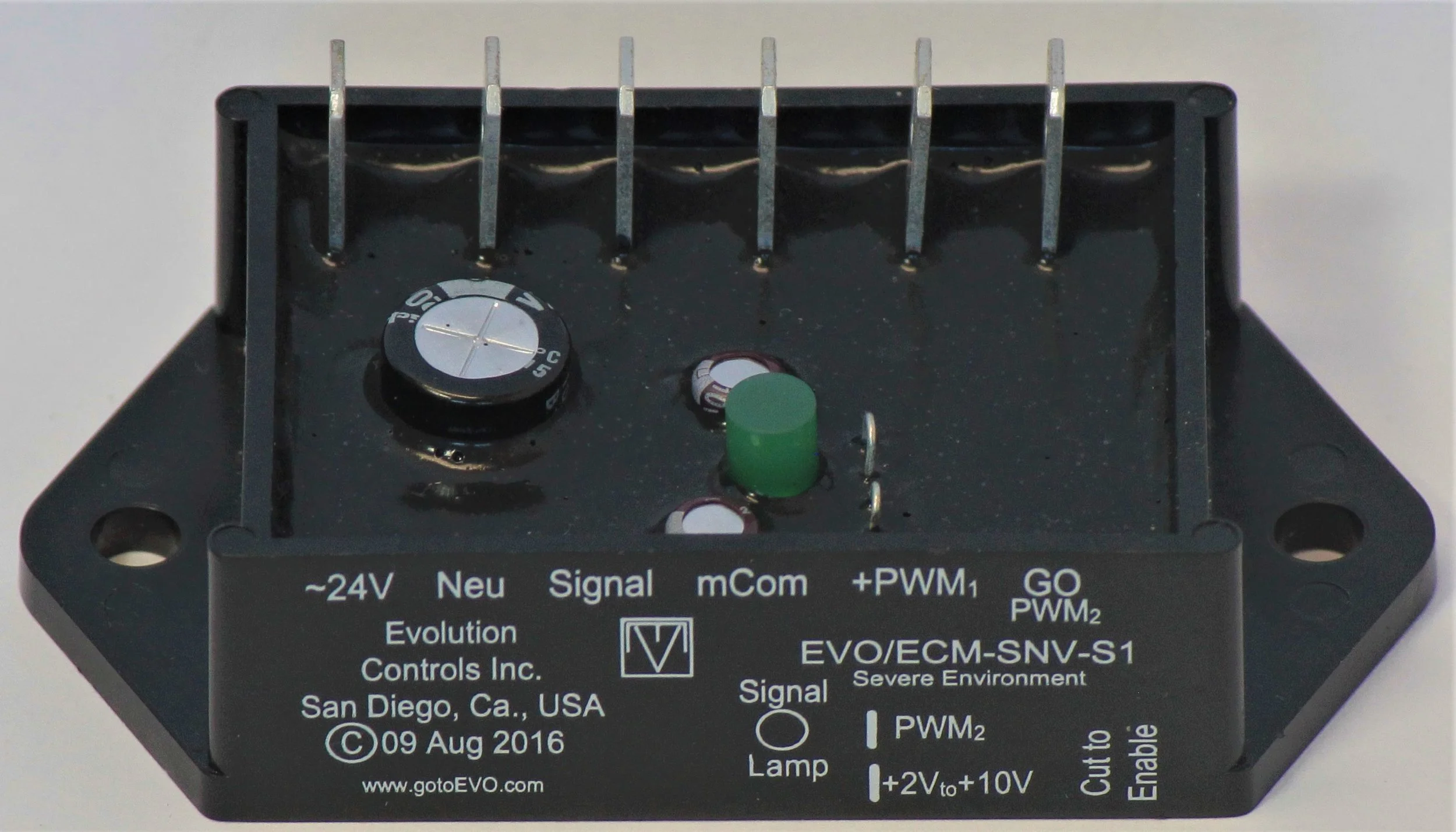

SNV-S1 Front.jpg
EVO/™ECM-SNV-S1 (Severe Environment Control Unit)

If you need a simple, rugged 0-+10V to ECM motor interface, the ECM-SNV Severe Environment control is the right choice.  Small and simple to mount. Simply connect ~24V power, an input signal and two or three wires to the motor to start using the control.  Mount the SNV in warm moist climates, or where cold weather taxes the life of other controls.

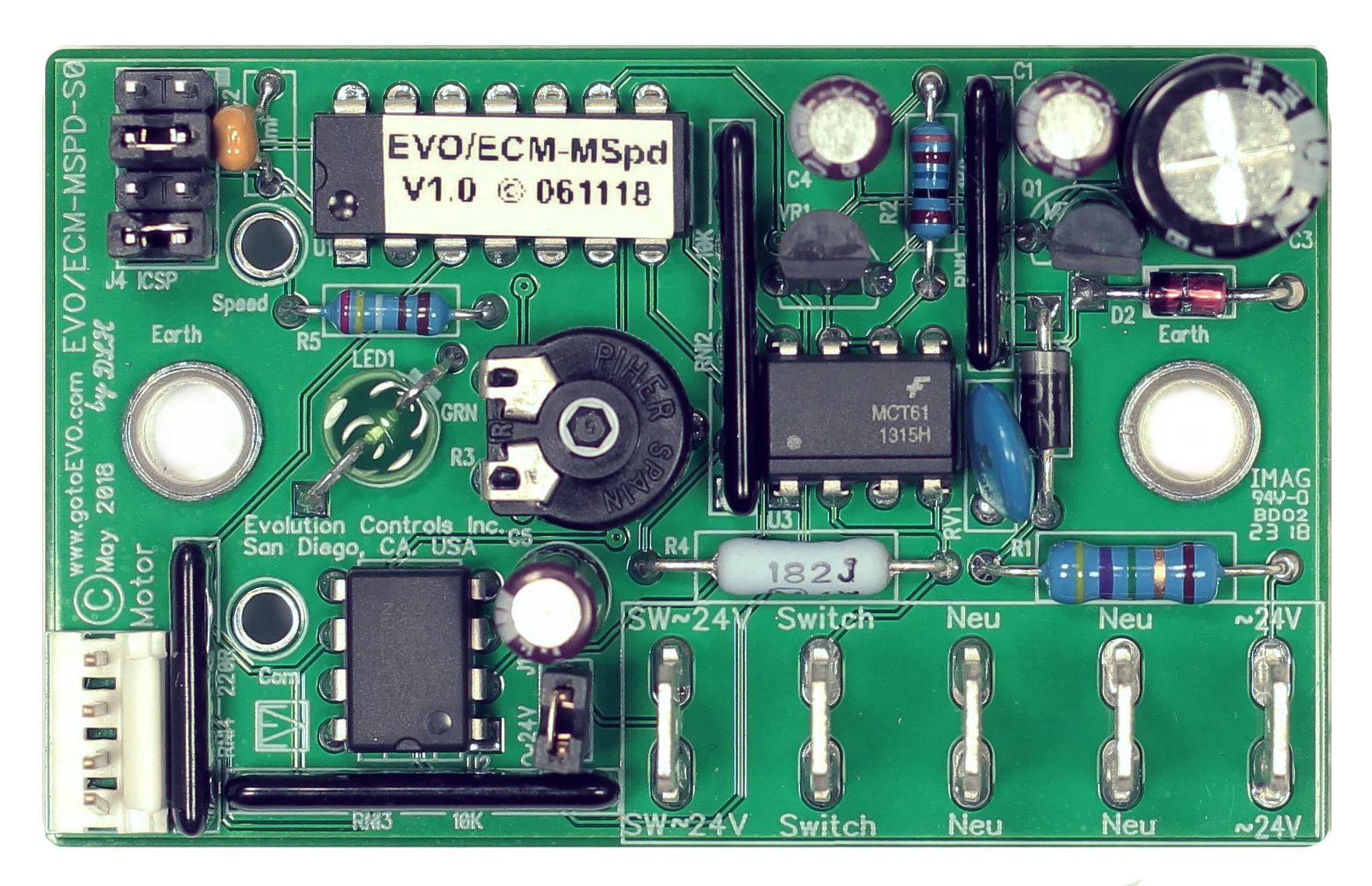

ECM Mspd.jpg
EVO/™ECM-MSpd (Multi-Speed Controller)

  • Up to 4 Speed Calls over 2 wires

  • Isolated Switch Input Protection

  • PWM or 0-+10V Output

  • Gradual or Fast Speed Change

  • Pilot Pulse (Autoswitch) provides a 49us pulse at a minimum and maximum signal so the motor knows the EVO/ECM-MSpd is connected.
