EVO/™ECM-VAU-PRO (Visual Automation Unit)

• Combines the functionality of EVO/ECM-ACU-PRO and EVO/ECM-VCU-PRO

• Allows remote adjustment of output from 0 to 100%

• Allows manual adjustment for local control

• 4-digit LED Display to allow easy reading in dark spaces

• Motor speed deviation alarm when controlling two motors

• PRO features for equipment manufacturer customization

• Equipment manufacturers can download preconfigured custom profile to PRO series controls

• Click the “LEARN MORE” button to learn more about the profile features in EHM-PRO, ECM-4SPD-PRO, ECM-ACU-PRO, and ECM-VCU-PRO controls.

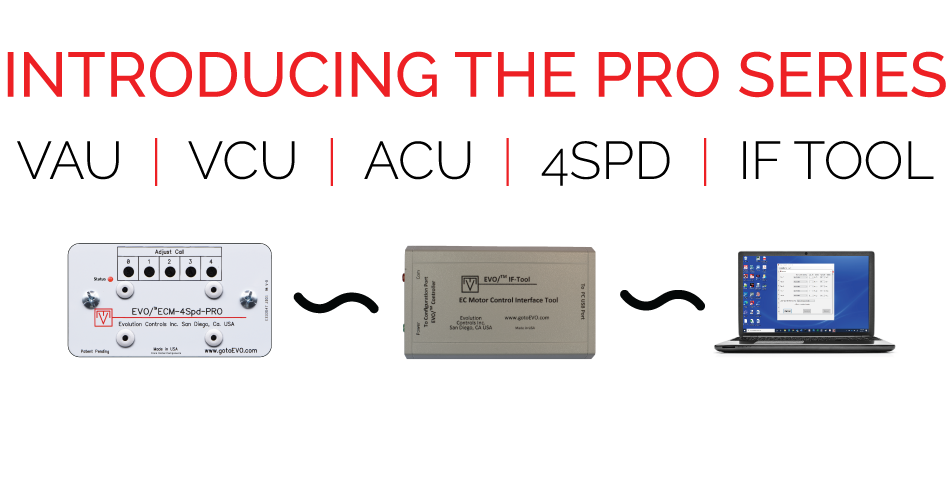

EVO/™IF-TOOL (Interface Tool)

• USB connection to PC

• Serial Connection to PRO series controls

• Automatically provides power when the connected PRO series control is not powered.

• Version is 4.1.447

EVO/™EHM-PRO (Electric Heat Modulator)

Profile Settings

• PI control loop settings for SSR overheat protection

• PI control loop settings for insufficient air flow overheat protection

EVO/™ECM-4SPD-PRO (4 Speed Interface Unit)

Profile Settings

• Flow indexes

• Control settings

• Low and High limit settings

• Pilot Pulse Control

EVO/™ECM-ACU-PRO (Automation Control Unit)

Profile Settings

• Low and High Output Limits

• Adjustable Off Delay Timer

• Compatible with 1, 18. or 36 pulse per turn EC motor rpm feedback.

• The 0-10V output RPM Line can be configured to return the ECM-ACU local adjust setting

• Fast and gradual speed change

• Option to enable/disable Pilot Pulse

• Adjustable Startup counts

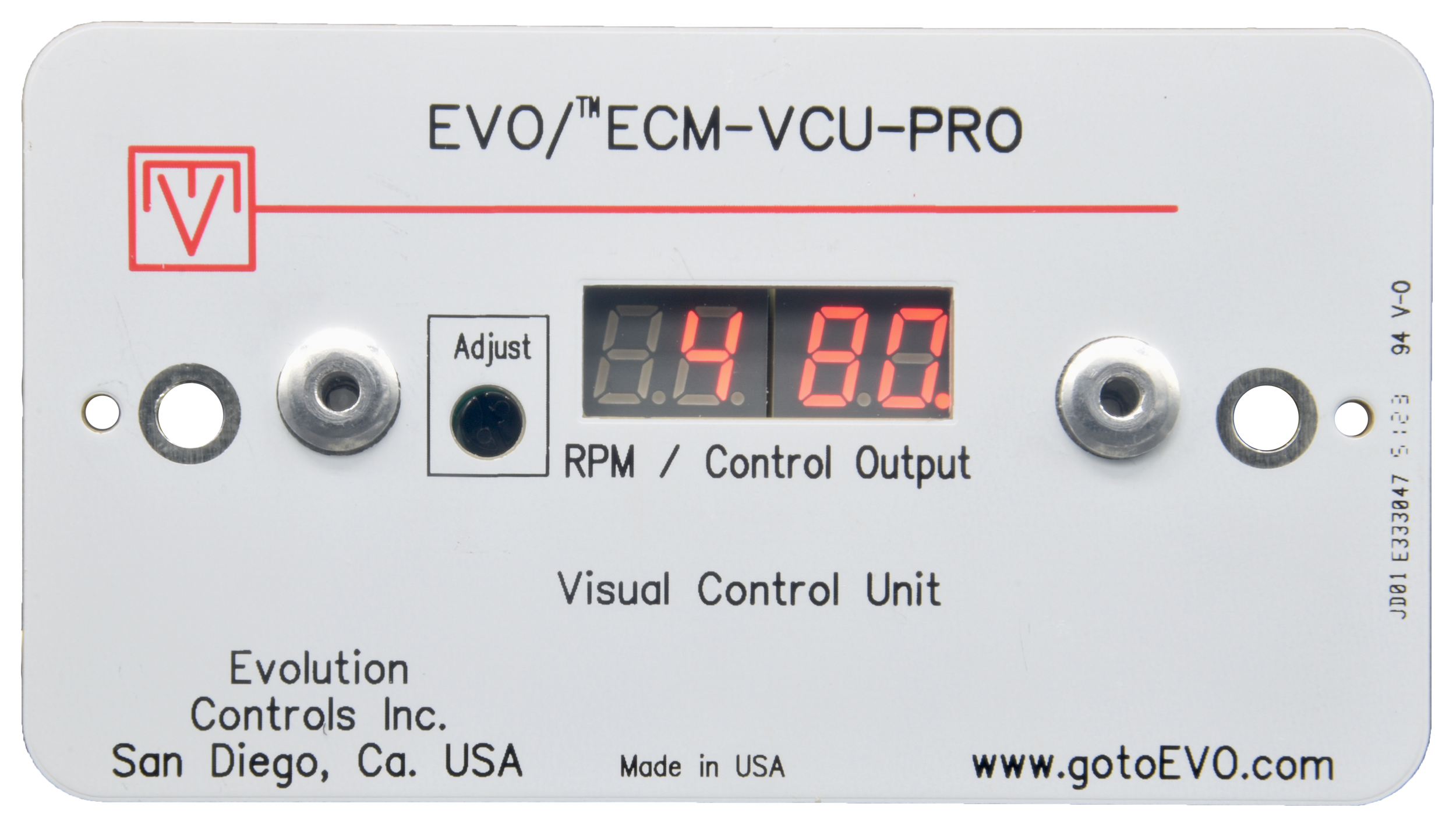

EVO/™ECM-VCU-PRO (Visual Unit)

Profile Settings

• Adjustment in engineering unit (CFM, GPM, etc.) for the application.

• High and low limit output settings

• Option for 1 pulse per turn (ppt) tachometer input

• Option to display a separator to mark the beginning of the display parameter list to enhance readability.

• Option to enable/disable Pilot/Pulse.
