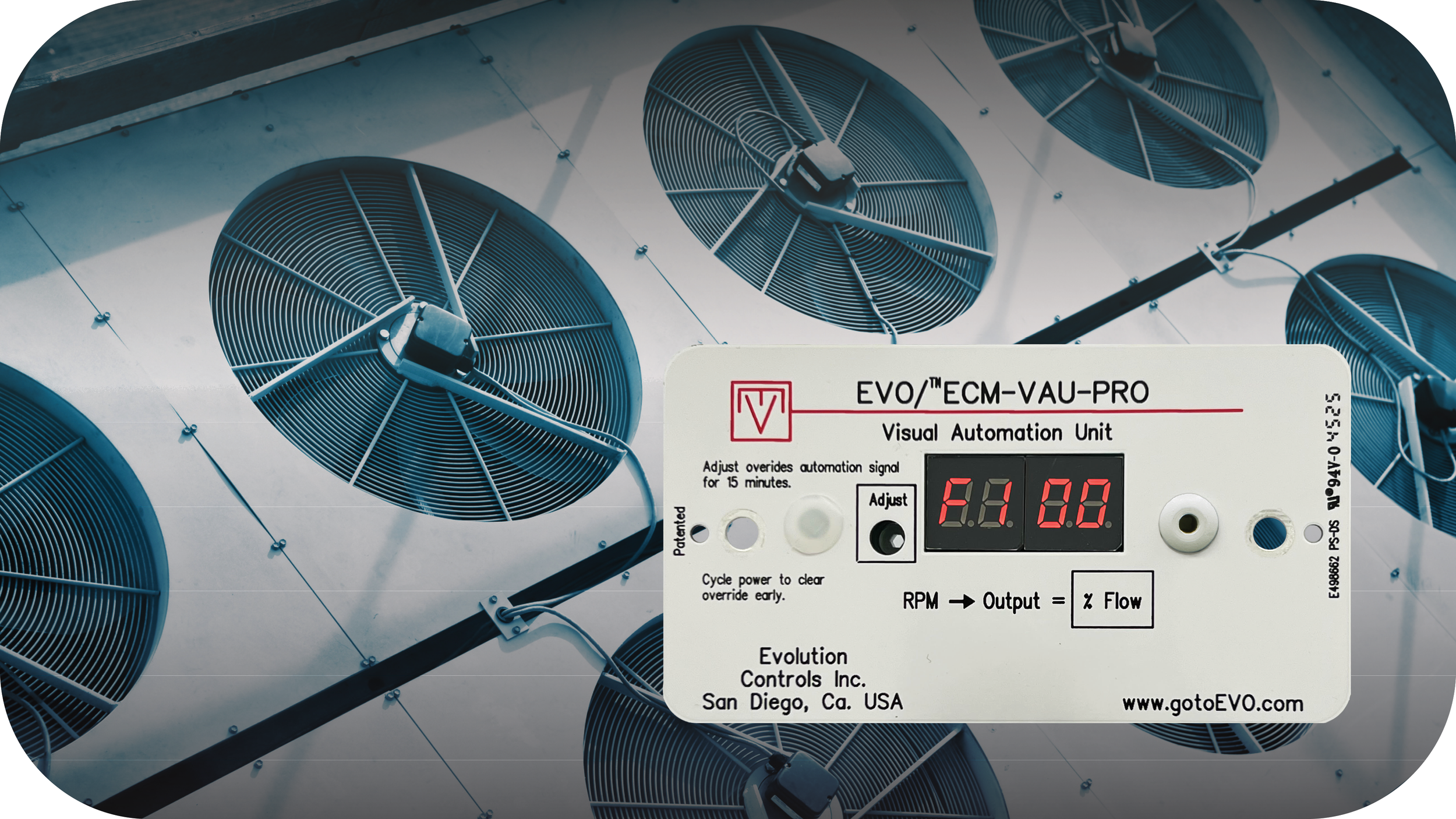

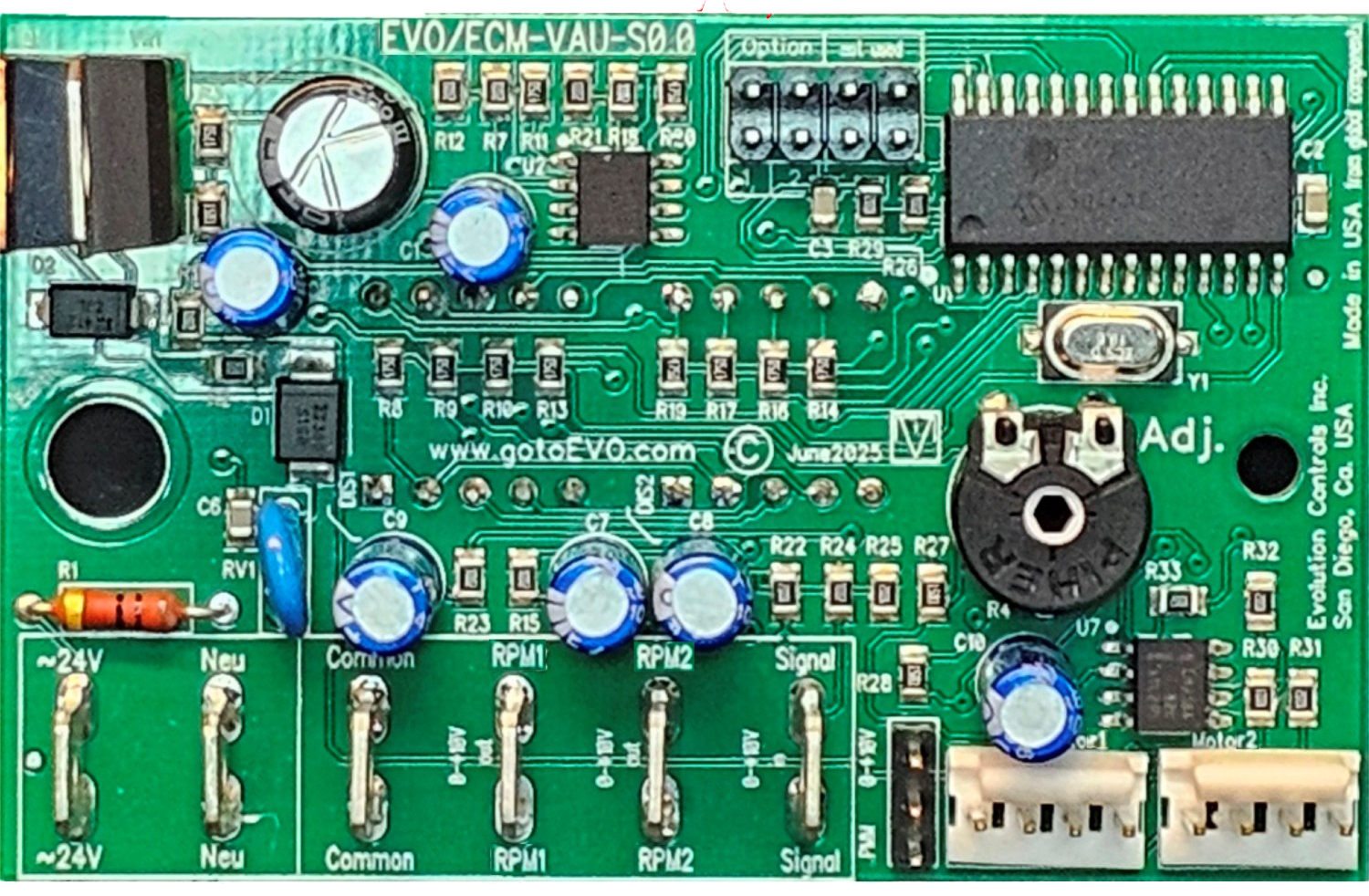

EVO/™ECM-VAU-PRO
The EVO/™ECM-VAU-PRO provides local or remote monitoring and control of one or two EC motor-powered fans. A PWM or 0 to +10V Motor Control Signal (MCS) makes the EVO/™ECM-VAU-PRO compatible with many controlled fans, pumps, inverters, and VFDs. When connected to automation, the local display indicates fan motor RPM and the output called by automation.
Works well with:
Commission fan-powered terminals pending automation installation
VAV fan control with precise airflow modulation
Exhaust fans with BAS speed control and monitoring
Rooftop units controlling EC fans with feedback and display
Eventual transition from manual to automation control
Multiple control options reduce inventory requirements
-
PWM or 0 to +10V Fan Motor Control Signal
0 to +10V Automation Control
Control 1 or 2 Fans In Unison
Monitor RPM for 2 Fans
Fan Speed Discrepancy Alarm
Percent or CFM Adjustment Display
OEM PROfile Configurable
Launch Mode
-
Power:
~24V±20% 50/60Hz, 10VA
NEC Class 2 USA
+24V±20%, 5W IEC Class II
Operating Environment:
0°F to 130°F / -18°C to 55°C Non-Condensing
Storage Environment:
0°F to 130°F / -18°C to 55°C Non-Condensing
Connections:
0.250" / 6.35 mm Tabs
Thermal Stability:
> 0.01%/°F, > 0.018%/°C
Go/Run:
+15V, 20mA Max.
Controls (MCS):
Jumper J5-A : +15V, 80Hz PWM, 20mA Max.
Jumper J5-B : 0 to +10V, 20mA max.
RPM Signal:
+5V Excitation to Pulsing BJT = 0-2000 RPM ±2 RPM
Adjust:
270° Rotation
Display:
4 Digit 7 Segment Red LED
Control:
0 to +10V, 2 to +10V, 4 to 20mA
RPM:
0 to +10V = 0 to 2000 RPM
