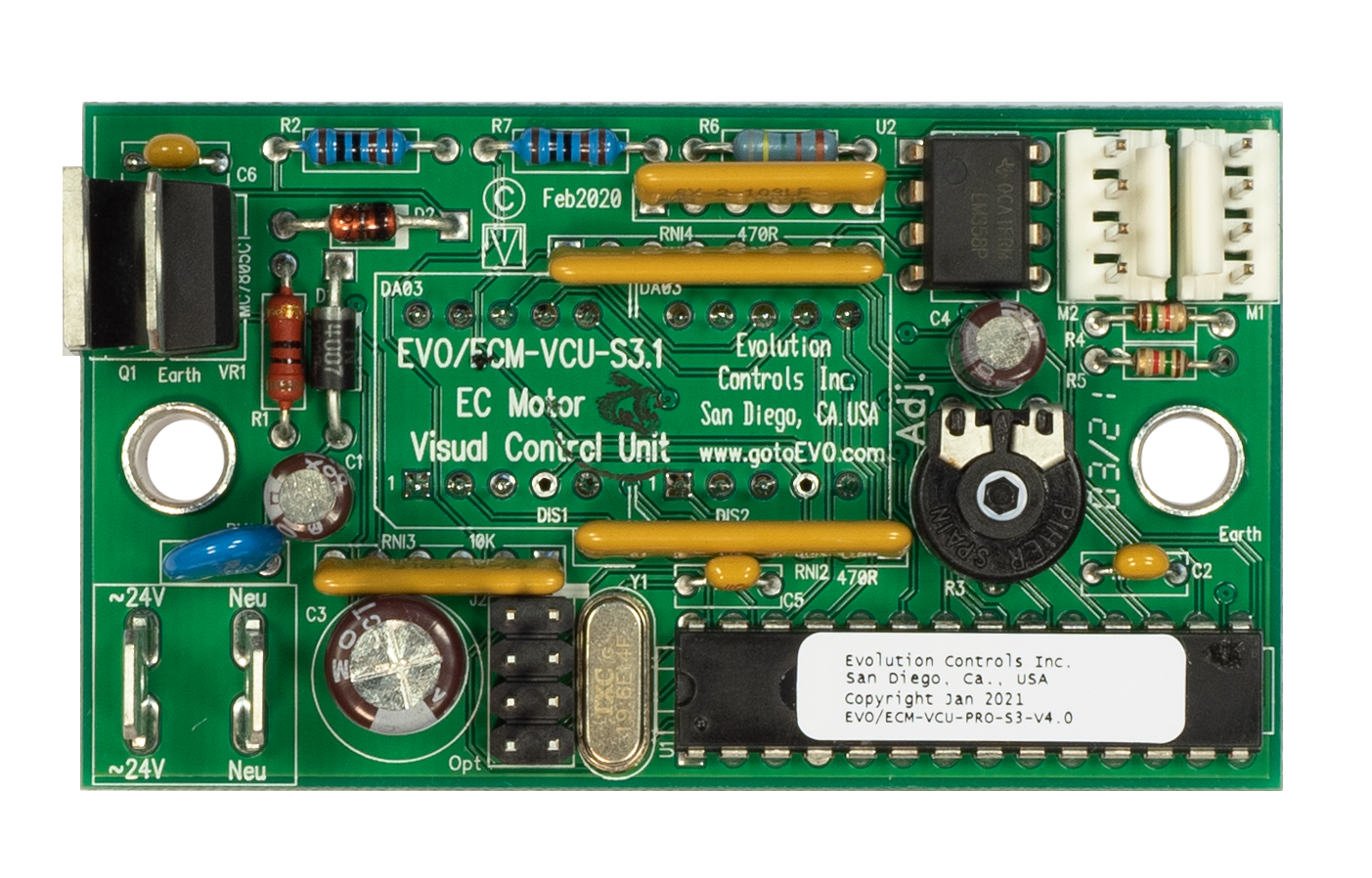

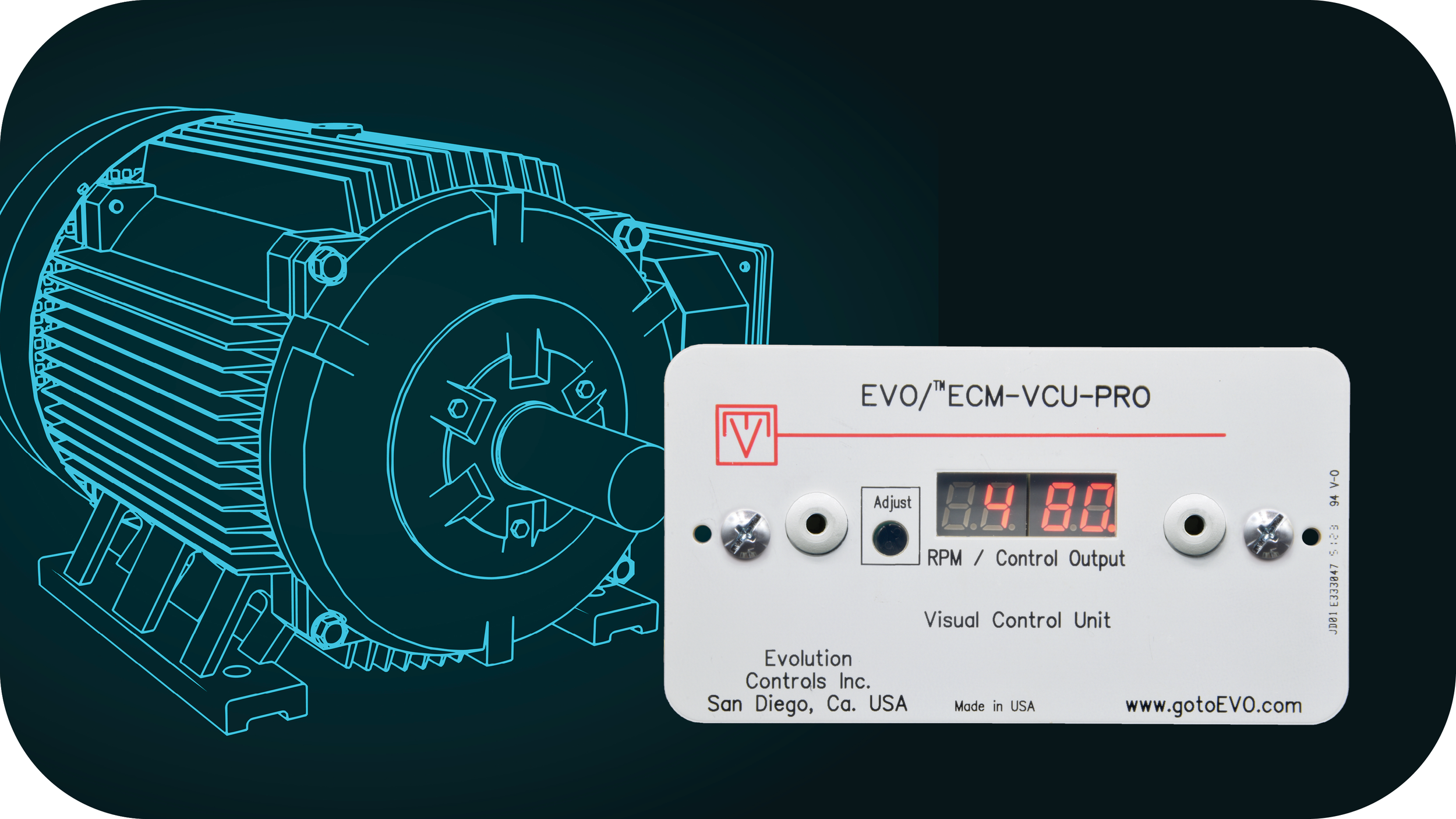

EVO/™ECM-VCU-PRO






The EVO/™ECM-VCU-PRO control allows accurate manual adjustment and monitoring of EC Motors. These are high-efficiency electrically commutated permanent magnet motors featuring microprocessor- controlled commutation.  The design provides exceptional efficiency, performance, and motor life. In air moving applications, these self-regulating motors may be factory configured so the fan provides constant mass airflow.

Works well with:

  • Rooftop Exhaust

  • Ventilation Systems

  • Restaurant

  • VAV Supply Fan

  • Cleanrooms

  • Modulating Diffuser

  • Constant Air Flow Control

    • Backward compatible with VCU S1 and S2

    • PWM or 0 - 10V Output

    • Multiple display modes

    • Connections for two motors

    • Dual Motor RPM display

    • Motor speed discrepancy alarm

    • PRO Series Features

  • Power:

    • ~24V±20% 50/60 Hz, 7 VA NEC Class 2USA

      +24V ±20% 5 W IEC Class II

    • Maximum 2 motors

    Adjustment:

    • 270° rotation

    • F = Off to 0-100% Output

    RPM:

    • 0-2000 RPM ± 2RPM

    Motor Control:

    • No jumper : +15V @ 20 mA

      Run & PWM with Pilot Pulse With

    • Jumper : 0 to 10V @ 20 mA

    Thermal Stability:

    • >0.01%/oF           >0.018%/oC

    Operating Environment:

    • 0oF to 130 oF (-18oC to 55oC) 10%-80% rh

    Connections:

    • 0.250 in. / 6.35 mm Tabs
