EVO/™ECM-TAPS (Speed Selector Panel)

• Allows a service technician to field select the output of EC Motors.

• Allows simple and economical selection of one of four pre-programmed flows.

• The motor is programmed by the equipment manufacturer to provide the desired flow for each tap. The output is simply selected by moving the selector wire from one tap to another.

• Boards may be ganged for more selections.

EVO™/ECM-TAPx4 (Four-Line, Four-Function Select Control Unit)

The EVO/ECM-TAPx4 is a 4-line, diode multiplexed function select board that may be used to allow field selection of motor speed for up to four thermostat or automation controls lines.

• Compatible with Regal Beloit's Genteq™ 2.3 and Eon™ motors.

• Compatible with other devices that use diode multiplexing to select speed taps.

• Features 4 tap lines selected by a thermostat or other 24Vac signal source.

• For residential and commercial applications requiring field selection of motor output.

EVO/™RLSW (Relay Switch)

• Detects PWM or senses 0-10VDC signal thresholds to automatically switch equipment on/off in HVAC applications

• Selectable switching voltage thresholds in 0-10V voltage sensitive relay mode

• Built-in hysteresis to avoid contact chatter

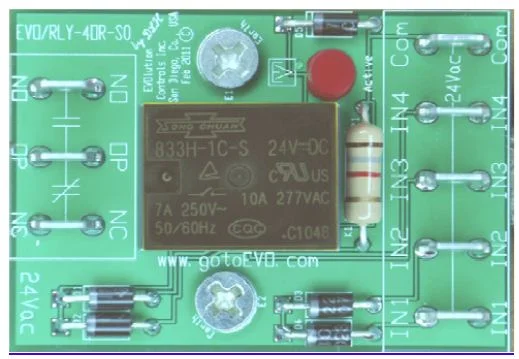

EVO/™RLY-4OR (4-Input OR Relay Control Unit)

• The EVO/RLY-4OR is a relay that is energized by applying 24Vac on any of four inputs.

• The device is designed to allow thermostats and other 24Vac devices to energize an outside air damper, valve, air cleaner, exhaust fan, ventilator, dehumidifier or other equipment whenever the thermostat calls for any function.

• With this device, energized inputs do not feed back into the de-energized circuits.

• The EVO/RLY-4OR may also be used with automation controller outputs to provide a logic function or save automation outputs.
