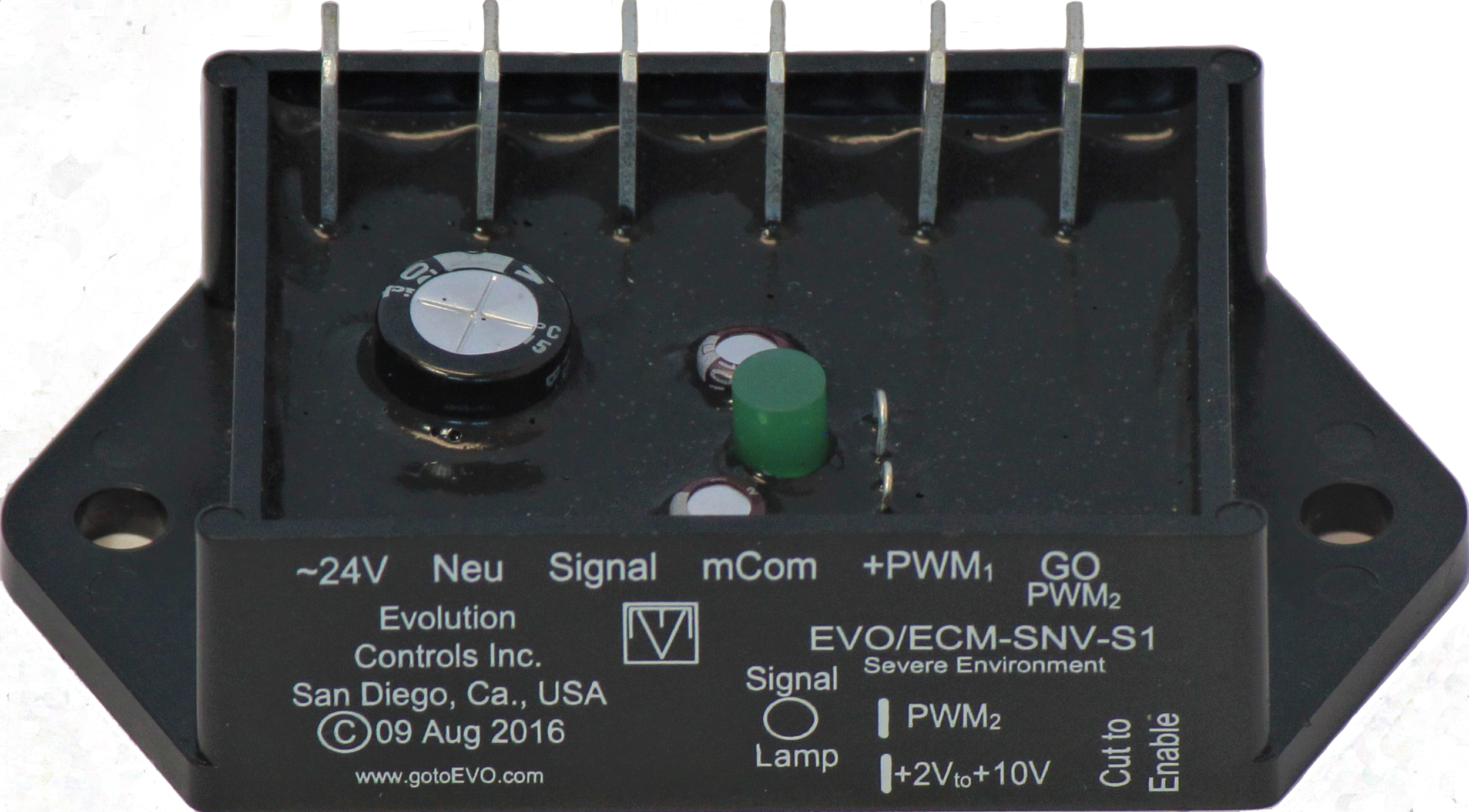

EVO/™ECM-SNV-S1 (Severe Environment Control Unit)

The EVO/ECM-SNV allows industry standard 0V to +10V automation signals to adjust PWM controlled EC Motors.   The device is designed and packaged to provide a solution for rooftop machinery and other severe environment applications.

The SNV provides remote adjustment of the motor output from 0% to 100% pwm of the motor’s programmed control range.  A signal lamp continuously flashes out the percentage of pwm.  Instruments are not required to read the output. The signal lamp also indicates the EVO/ECM-SNV is powered, the microcontroller is running and indicates the control signal in tenths of a Volt.

  • The green lamp continuously indicates the %pwm motor control signal.

  • Pilot Pulse (Autoswitch) provides a 49us pulse at a minimum and maximum signal so the motor knows the EVO/ECM-SNV is connected.

  • Pilot pulse detection switches the motor to be controlled by the pilot pulse capable controller for automation and other special applications.


EVO/™ECM-MSpd (Multi-Speed Controller)
  • Up to 4 Speed Calls over 2 wires

  • Isolated Switch Input Protection

  • PWM or 0-+10V Output

  • Gradual or Fast Speed Change

  • Pilot Pulse (Autoswitch) provides a 49us pulse at a minimum and maximum signal so the motor knows the EVO/ECM-MSpd is connected.



EVO/™ECM-VCU-PRO (Visual Control Unit)

Four-digit LED display alternates between flow index and RPM. Easy to adjust, especially in dark spaces.

  • PWM or 0-10 volts DC outputs

  • Connect up to two motors

  • Allows accurate manual adjustment and monitor of fans.

  • Features a 4-digit LED display to allow easy reading in dark spaces.

  • Flow index can be set with the screwdriver adjust.

  • Four display modes for flow indexes and motor RPMs.

  • Motor speed deviation alarm when controlling two motors

  • May also be used where automation systems only turn the fan on or off.


EVO/™ECM-X13
  • Allow a 0- +10V signal to step control a Regal Beloit X13 or Endura Pro ECM motor.

  • Two control sequences to provide the smoothest possible proportional control of the 5 stage ECM motor
